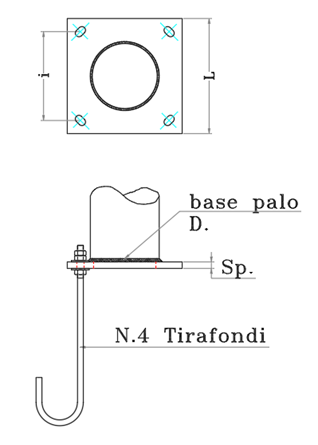

Base plate designed considering the maximum moment of resistance at the base of the considered column, welded to the column by welders qualified by the I.I.S. (Italian Institute of Welding) and with welding quality check according to EN ISO 3834.
The anchor bolts are made of steel rod, blank and completed with galvanised bolts and washers.
| Product Code | Description | weight kg | Product Code | Description |
|---|---|---|---|---|
| +P (MAXD131) | column max D131 ... with welded square base plate 250x15, 4 slotted holes d20 spacing 170x170 | TRFM16X750U3D2R | Anchor bolt steel grade S355J2, M16 L.Dev.750, curved "J" type R.48 hook 75 with 1 threaded end L.100, blank + 3 medium nuts M16 and 2 plain washers (17x48x4) electrogalvanised, all mounted | |
| +P (MAXD172) | column max D172 ... with welded square base plate 300x15, 4 slotted holes d22 spacing 220x220 | TRFM18X750U3D2R | Anchor bolt steel grade S355J2, M18 L.Dev.750, curved "J" type R.54 hook 75 with 1 threaded end L.100, blank + 3 medium nuts M18 and 2 plain washers (20x54x4) electrogalvanised, all mounted | |
| +P (MAXD219) | column max D219 ... with welded square base plate 350x20, 4 slotted holes d24 spacing 270x270 | TRFM20X1000U3D2R | Anchor bolt steel grade S355J2, M20 L.Dev.1000, curved "J" type R.60 hook 100 with 1 threaded end L.120, blank + 3 medium nuts M20 and 2 plain washers (22x60x4) electrogalvanised, all mounted | |
| +P (MAXD250) | column max D250 ... with welded square base plate 400x20, 4 slotted holes d24 spacing 300x300 | TRFM20X1000U3D2R | Anchor bolt steel grade S355J2, M20 L.Dev.1000, curved "J" type R.60 hook 100 with 1 threaded end L.120, blank + 3 medium nuts M20 and 2 plain washers (22x60x4) electrogalvanised, all mounted | |
| +P (MAXD320) | column max D320 ... with welded square base plate 475x20, 4 slotted holes d28 spacing 380x380 | TRFM24X1200U3D2R | Anchor bolt steel grade S355J2, M24 L.Dev.1200, curved "J" type R.72 hook 120 with 1 threaded end L.140, blank + 3 medium nuts M24 and 2 plain washers (26x72x4) electrogalvanised, all mounted | |
| +P (MAXD370) | column max D370 ... with welded square base plate 525x25, 4 slotted holes d28 spacing 430x430 | TRFM24X1200U3D2R | Anchor bolt steel grade S355J2, M24 L.Dev.1200, curved "J" type R.72 hook 120 with 1 threaded end L.140, blank + 3 medium nuts M24 and 2 plain washers (26x72x4) electrogalvanised, all mounted | |
| +P (MAXD450) | column max D450 ... with welded square base plate 625x25, 4 slotted holes d31 spacing 520x520 | TRFM27X1500U3D2R | Anchor bolt steel grade S355J2, M27 L.Dev.1500, curved "J" type R.81 hook 150 with 1 threaded end L.160, blank + 3 medium nuts M27 and 2 plain washers (30x81x6) electrogalvanised, all mounted |
Document owned by Pali Campion srl. Reproduction is permitted only if the source is cited. Technical data are indicative; final specifications will be stated when ordering.
